Illuminated Letter Wiring Options - Plug-and-Play vs. Standard Wire Connection
Illuminated Letter Wiring Options
Plug-and-Play vs. Standard Wire Connection
We offer two common wiring options for illuminated letters and channel letters: Plug-and-Play Wiring and Standard Wire Connection. Both methods can provide reliable power to the letters when installed correctly, but they are designed for different installation needs.
Option 1: Plug-and-Play Wiring
Plug-and-Play Wiring uses pre-installed waterproof male/female connectors and T-connectors. The letters can be connected without stripping wires or making manual electrical connections.
This option is recommended for most customers because it makes installation faster and easier.
Advantages
- Fast and easy installation
- No wire stripping required
- Lower risk of incorrect wiring
- Easy to identify and connect each letter
- Convenient for replacing or servicing individual letters
- Suitable for DIY installation
- Ideal for customers with limited electrical experience
When high-quality IP67 or IP68 waterproof connectors are used and properly tightened, Plug-and-Play Wiring can also provide excellent long-term reliability for outdoor installations.
Option 2: Standard Wire Connection
Standard Wire Connection uses regular low-voltage wires instead of plug-and-play connectors. The wires from each illuminated letter are manually connected to the main 12V wiring system.
This method is more suitable for professional sign installers, electricians, and permanent commercial installations.
Advantages
- Fewer connectors in the system
- Fewer potential connection points
- Very reliable when professionally installed
- Suitable for permanent outdoor installations
- Easier to customize the wiring layout for large signage projects
Because the wires must be manually connected, proper wire connections, insulation, and waterproofing are important.
Wiring Method Comparison
| Feature | Plug-and-Play Wiring | Standard Wire Connection |
|---|---|---|
| Installation Speed | Fast | Moderate |
| Installation Difficulty | Easy | Requires more experience |
| DIY Friendly | Excellent | Limited |
| Risk of Wiring Errors | Low | Higher if installed incorrectly |
| Number of Connections | More | Fewer |
| Maintenance | Easy | More difficult |
| Letter Replacement | Easy | Requires rewiring |
| Outdoor Use | Excellent with waterproof connectors | Excellent when properly sealed |
| Long-Term Reliability | Very good | Excellent with professional installation |
| Best For | Most customers and DIY installation | Professional installers and permanent projects |
Which Wiring Option Should I Choose?
For most customers, we recommend:
Plug-and-Play Wiring
It provides the best balance of installation speed, convenience, safety, and easy maintenance.
For projects installed by a professional electrician or sign installer, especially large permanent outdoor signage, Standard Wire Connection is also an excellent choice.
Important Electrical Safety
Illuminated letters must be connected to the correct 12V DC power supply.
Do not connect the illuminated letters directly to AC power or to a DC power supply exceeding 12V, as this may damage or burn out the LEDs.

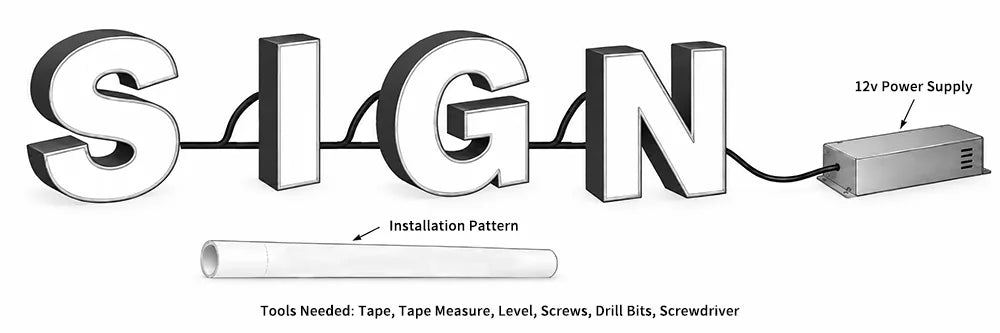

Please follow the provided wiring diagram during installation.
If you are not familiar with electrical wiring, please have a professional handle the wiring.
Recommended Installation
DIY / Easy Installation
Choose Plug-and-Play Wiring
Professional Installation
Choose Standard Wire Connection
Large Commercial Signage
Standard Wire Connection may provide a cleaner and more flexible wiring layout.
Easy Maintenance or Future Letter Replacement
Plug-and-Play Wiring is usually the better option.
