Types of Channel Letter Signs: A Complete Guide

Channel letter signs are one of the most popular choices for storefronts and commercial buildings. Their three-dimensional construction, bright LED illumination, and highly customizable design make them suitable for retail stores, restaurants, hotels, salons, offices, shopping centers, and many other businesses.

However, not all channel letters are the same. Different types of channel letter signs provide different lighting effects, appearances, and installation options.

In this guide, we'll explain the most common channel letter types—including face-lit, backlit, face and back-lit, trimless, and mini channel letters—to help you choose the right option for your business.

What Are Channel Letter Signs?

Channel letters are individually fabricated 3D letters, logos, or shapes typically mounted on a storefront, building facade, wall, raceway, or backing panel.

A typical illuminated channel letter may include:

• Acrylic face or back
• Aluminum or stainless steel returns
• LED modules
• Internal wiring
• Power supply
• Mounting hardware

Depending on how the LEDs illuminate the letter, channel signs can create front illumination, halo illumination, or a combination of both.

1. Face-Lit Channel Letters

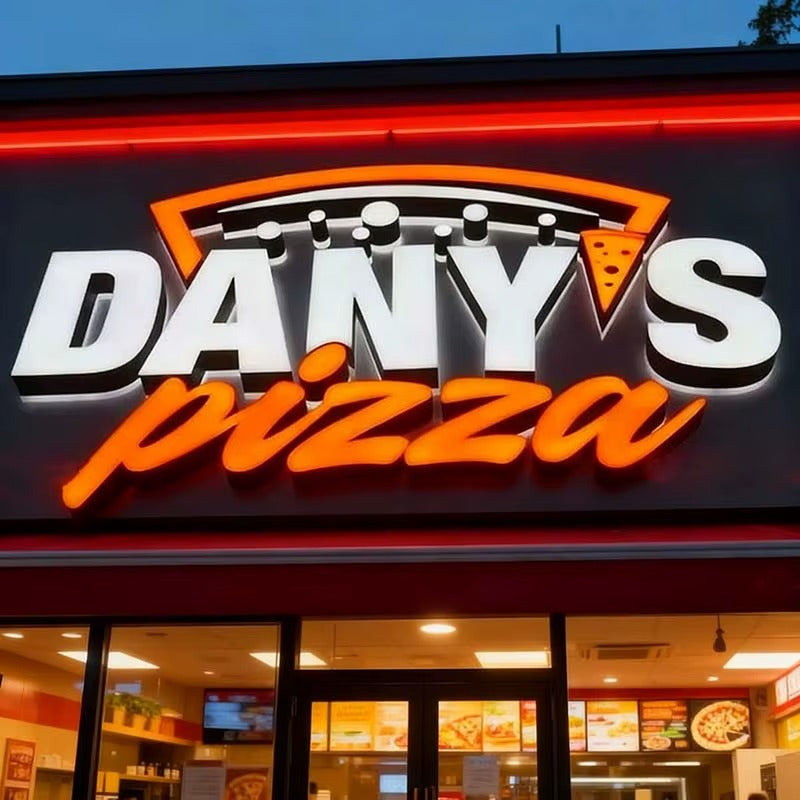

Face-lit channel letters, also called front-lit channel letters, are the most common type of illuminated channel letter sign.

LED modules are installed inside each letter, and the light shines through a translucent acrylic front face.

This produces bright, direct illumination that makes the business name or logo highly visible at night.

Advantages of Face-Lit Channel Letters

• Bright and highly visible
• Excellent for nighttime advertising
• Wide range of colors
• Suitable for logos and custom fonts
• Cost-effective for many commercial projects
• Good indoor and outdoor performance

Best Applications

Face-lit letters are ideal for:

• Retail stores
• Restaurants
• Shopping centers
• Supermarkets
• Gyms
• Salons
• Commercial buildings

If maximum visibility is your priority, face-lit channel letter signs are often one of the best options.

2. Backlit Channel Letters

Backlit channel letters, also known as halo-lit channel letters or reverse channel letters, create a softer and more sophisticated lighting effect.

Instead of illuminating through the front, LEDs shine toward the wall behind each letter. The reflected light creates a glowing halo around the letters.

The faces and returns are typically fabricated from aluminum or stainless steel, while the rear can incorporate clear or translucent acrylic depending on the construction.

Advantages of Backlit Channel Letters

• Premium architectural appearance
• Soft halo illumination
• Attractive day and night
• Excellent for metal finishes
• Modern and sophisticated design

Brushed, polished, painted, or plated stainless steel can be combined with halo lighting to create a particularly high-end appearance.

Best Applications

Backlit channel letters are popular for:

• Hotels
• Corporate offices
• Restaurants
• Luxury retail stores
• Jewelry stores
• Salons and spas
• Reception walls
• High-end commercial buildings

For businesses looking for elegant signage rather than maximum brightness, halo-lit channel letters are an excellent choice.

3. Face & Back-Lit Channel Letters

Face and back-lit channel letters combine direct front illumination with halo backlighting.

Light shines through the acrylic face while additional illumination projects toward the wall behind the letters.

This creates two different lighting effects in a single sign.

Advantages of Face & Back-Lit Channel Letters

• Bright front illumination
• Soft halo effect behind the letters
• Greater visual depth
• Strong nighttime visibility
• Premium and distinctive appearance
• Multiple lighting color combinations

For example, a sign can use white front illumination with warm white halo lighting, or different colors can be combined to match the brand.

Best Applications

Face and back-lit letters work particularly well for:

• Restaurants
• Bars
• Hotels
• Entertainment venues
• Salons
• Retail stores
• Premium commercial spaces

They are a good option for businesses that want something more distinctive than traditional front-lit signage.

4. Trim Cap Channel Letters

Traditional face-lit channel letters often use a trim cap around the edge of the acrylic face.

The trim cap connects the acrylic face to the metal return while creating a visible border around each letter.

This construction has been widely used in commercial signage for many years.

Advantages

• Reliable construction
• Suitable for larger letters
• Easy to service
• Classic channel letter appearance
• Good for outdoor storefront signage

Trim cap channel letters are commonly used for retail stores, restaurants, shopping centers, and other exterior commercial applications.

5. Trimless Channel Letters

Trimless channel letters eliminate the obvious border around the front acrylic face.

This creates cleaner edges and a more modern appearance compared with traditional trim cap construction.

The illuminated face becomes more visually prominent, especially when viewed from the front.

Advantages of Trimless Channel Letters

• Clean, modern appearance
• Minimal visible border
• Strong illuminated face
• Suitable for contemporary branding
• Excellent for logos and custom lettering

Trimless designs are increasingly popular for modern storefronts and businesses that prefer minimalist signage.

6. Mini Channel Letters

Mini channel letters are compact illuminated letters designed for smaller signs and more detailed logos.

Traditional channel letters can become difficult to fabricate when letters or strokes are very small. Mini channel letter construction allows manufacturers to create smaller illuminated characters while maintaining a clean appearance.

Advantages of Mini Channel Letters

• Suitable for smaller lettering
• Slim and refined appearance
• Good for detailed logos
• Modern 3D effect
• Suitable for indoor and selected outdoor applications

Best Applications

Mini channel letters are commonly used for:

• Reception walls
• Interior branding
• Retail stores
• Shopping malls
• Salons
• Offices
• Restaurants
• Small storefront signs

They are particularly useful when the design contains smaller text that would not work well with traditional deep channel letter construction.

7. Custom Logo Channel Letters

Channel letters don't have to be limited to text.

A company logo can also be fabricated as a custom illuminated channel sign using the same basic construction methods.

Depending on the logo design, manufacturers can combine:

• Face illumination
• Halo illumination
• Acrylic
• Stainless steel
• Aluminum
• Custom paint colors
• Different LED colors
• Illuminated and non-illuminated sections

This allows the finished sign to closely reproduce the original brand identity.

Comparison of Channel Letter Types

Channel Letter Type	Lighting Effect	Appearance	Best For
Face-Lit	Front illumination	Bright & highly visible	Storefronts, retail, restaurants
Backlit / Halo-Lit	Rear halo	Premium & elegant	Hotels, offices, luxury brands
Face & Back-Lit	Front + rear illumination	High-impact & distinctive	Restaurants, bars, premium stores
Trim Cap	Front illumination	Traditional	Outdoor commercial signage
Trimless	Front illumination	Clean & modern	Modern storefronts
Mini Channel Letters	Varies	Small & refined	Interior branding, small logos
Custom Logo Letters	Custom	Brand-specific	Almost any business

Raceway-Mounted vs. Direct-Mounted Channel Letters

In addition to lighting style, channel letters can also be classified by how they are installed.

Direct Mount

Each letter is individually mounted directly onto the wall or building facade.

This provides a clean appearance with minimal visible mounting structure.

Raceway Mount

Letters are attached to a metal raceway that contains much of the electrical wiring and power components.

The entire raceway is then mounted to the building.

Raceway mounting can reduce the number of penetrations required in the building facade and may simplify installation and maintenance.

The best mounting method depends on the building structure, sign size, electrical requirements, and local sign regulations.

Which Type of Channel Letter Sign Is Best?

The right option depends on your business and the visual effect you want to achieve.

Choose face-lit channel letters if you want maximum brightness and visibility.

Choose backlit channel letters if you prefer a premium, sophisticated halo effect.

Choose face and back-lit channel letters if you want both strong visibility and decorative backlighting.

Choose trimless channel letters for a cleaner and more contemporary illuminated appearance.

Choose mini channel letters for smaller text, detailed logos, and compact applications.

For many businesses, the final design can also combine several construction methods to create a completely custom channel letter sign.

How to Choose Channel Letters for Your Business

Before ordering channel letter signage, consider:

Visibility: How far away should customers be able to see your sign?

Installation location: Will the sign be installed indoors or outdoors?

Lighting effect: Do you prefer bright front lighting, a soft halo, or both?

Brand style: Does your business need a bold, modern, minimalist, or premium appearance?

Sign size: Smaller letters may require different construction methods than large exterior channel letters.

Building surface: The wall material and installation conditions can affect the mounting method.

Local regulations: Some cities and commercial properties have specific requirements regarding sign size, illumination, electrical components, and installation.

Considering these factors before production can help you choose the most appropriate channel letter type.

Final Thoughts

There are many types of channel letter signs, and each offers a different combination of visibility, lighting, construction, and appearance.

For most commercial signage projects, the main choices are:

Face-lit channel letters for bright front illumination, backlit channel letters for an elegant halo effect, and face & back-lit channel letters for a combination of both.

Trimless and mini channel letters provide additional options for businesses looking for more modern or compact designs.

By choosing the right channel letter sign type, materials, LED lighting, and mounting method, you can create a custom storefront sign that strengthens your brand and remains highly visible both day and night.
